Specification | Value |
---|---|
Product | AKM flagship DAC combo AK4191 + AK4499EX |
Power Supply Mode | Desktop/Portable Dual Power Supply Mode |
Output Power | 1600mW high output power |
Global PEQ Function | Yes |
Display Screen | Full-Colour IPS Display Screen |
Gain Modes | 5-Level Gain Modes |
USB Chipset | XMOS 16-core XU316 |
Bluetooth Chipset | Qualcomm QCC5125 |
Max. Sampling Rate (USB DAC) | Up to PCM 768kHz/32bit / Native DSD512 |
Max. Sampling Rate (Coaxial) | Up to PCM 192kHz/24bit / DoP DSD64 |
MQA Support | Yes |
SNR | ≥ 123db (A-Weighted) |
THD+N | <0.0004% (LO/1kHz/10kΩ) |
Bluetooth Codec Support (Receive) | SBC / AAC / aptX / aptX LL / aptX Adaptive/ aptX HD / LDAC |

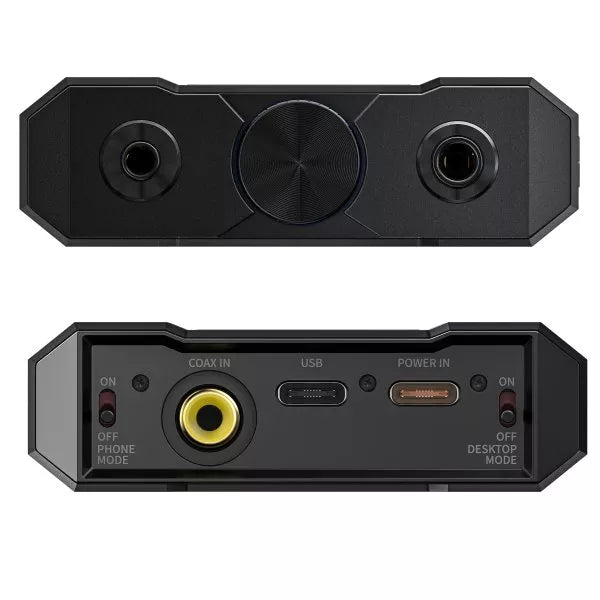

Headphone Output | 1 x 3.5mm Single-ended 1 x 4.4mm Balanced |
Line Out | 1 x 3.5mm Single-ended (Shared PO) 1 x 4.4mm Balanced (Shared PO) |
Line In | 1 x Coaxial (RCA) |
USB Connection | 1 x Type-C USB2.0 (Charge/Data Transfer) 1 x Type-C USB2.0 (Charge) |
Dimensions (H x W x D) | 143.5 x 71.75 x 21.75mm |
Weight | 305g |
