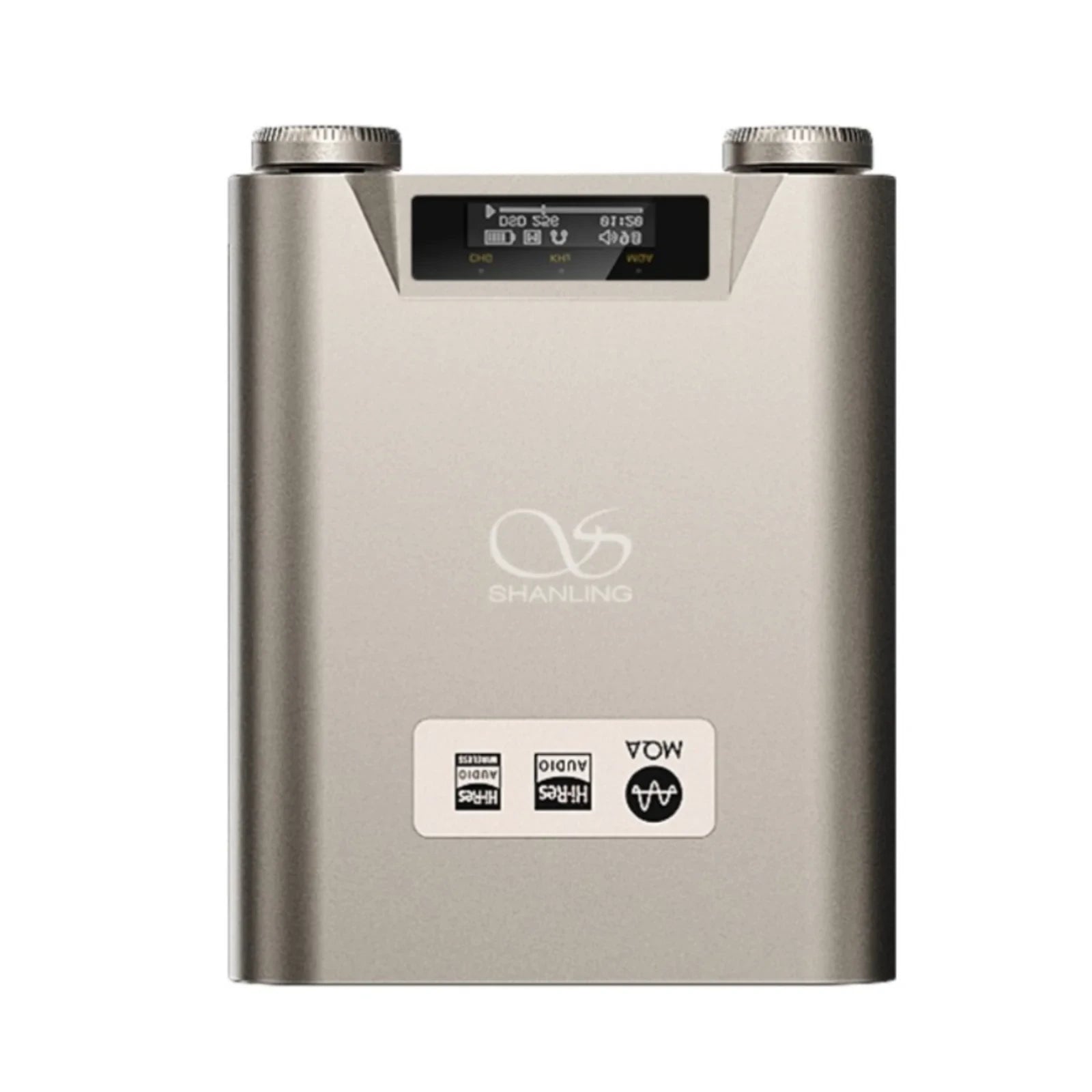

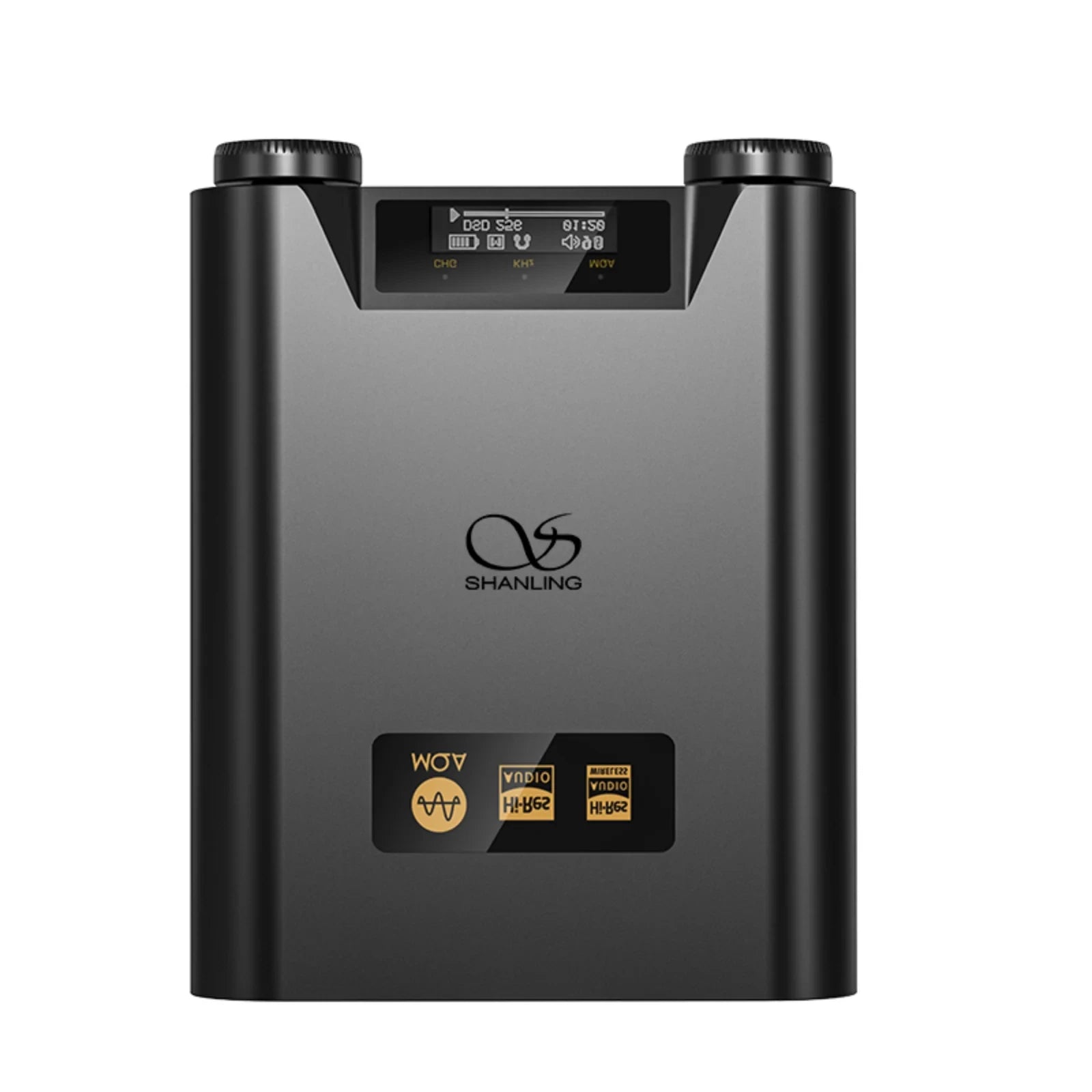

Introducing the Shanling H5 MQA Portable DAC Headphone Amplifier: Unleash the True Potential of Your Music. Experience the pinnacle of audio performance with the Shanling H5 MQA Portable DAC Headphone Amplifier. Designed as an intermediate product in the renowned H series, it takes high-cost performance to new heights. Immerse yourself in a world of pristine sound and enjoy the convenience of local playback and APP control.
Unparalleled Audio Quality:
Equipped with dual AKM AK4493SEQ chips, the Shanling H5 delivers unparalleled audio precision and fidelity. It brings your music to life, capturing every nuance and detail with stunning clarity. Experience a warm and immersive sound signature, reminiscent of our acclaimed M6 Ultra.
Versatile Connectivity:
With multiple input methods, the H5 offers endless possibilities. Seamlessly connect via local TF card, USB, SPDIF (coaxial/optical), or Bluetooth 5.0. Effortlessly integrate with your mobile phone, computer, home audio system, or any compatible device.
Flexible Output Options:
Tailor your listening experience to your preferences. The H5 provides a range of output interfaces, including RCA output with pre-stage support, 3.5mm headphone output, and 4.4mm headphone output. Connect to your choice of headphones, active speakers, or amplifiers for personalized audio bliss.
Designed for Every Scenario:
Whether you're on the go or at home, the Shanling H5 is your perfect audio companion. Its rounded design ensures comfortable portability, allowing you to enjoy your favorite music anytime, anywhere. Take advantage of the 0.87-inch screen and intuitive controls provided by the Ingenic X1000 platform.
Local Playback at Your Fingertips:
Enjoy the convenience of integrated MicroSD card support and a dedicated music player. The H5 gives you the freedom to carry your music library with you wherever you go. Take full control of your listening experience with the Eddict Player app, offering seamless remote control functionality.
Enhanced Amplification:
Powered by the TPA6120 and LTA8092 amplifier design, the H5 delivers exceptional power and precision. Experience a wider soundstage, improved dynamics, and heightened musicality. The Xmos XU316 USB chip ensures a seamless connection for uncompromised audio performance.
Long-Lasting Battery Life:
With its robust 3500mAh lithium battery, the H5 keeps the music playing for up to 12.5 hours, depending on your usage. Say goodbye to interruptions and immerse yourself in hours of uninterrupted musical bliss.
Upgrade your audio experience with the Shanling H5 MQA Portable DAC Headphone Amplifier. Unleash the true potential of your music and indulge in a world of captivating sound like never before.
| Dimensions： |
102 x 85 x 25 mm |
| Weight: | 270.4 g |
| Screen： |
0.87-inch Screen |
| Audio formats: |
DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS |
| USB Input Hi-Res Support： |
32 bit / 768 kHz， DSD 512 |
| MicroSD Hi-Res Support： |
32 bit / 384 kHz， DSD 256 |
| Gain Setting: |
Three Level Setting |
| Storage： |
MicroSD Card Slot, up to 2TB |
| DAC： |
2x AKM AK4493SEQ |
| Digital Filters： |
6 Preset Filters |
| Bluetooth |
Bluetooth 5.0 Receiver |
| Bluetooth Codec Support: |
LDAC / AAC / SBC |
| Outputs: | |
|
Single-Ended Output： |
|
| Output Power: |
2.7V@32Ω（227mW@32Ω) |
| Frequency Response： |
20 Hz - 40 kHz (-0.7 dB) |
| THD+N： | 0.00% |
| Channel separation： |
80 dB @ 32 Ohm |
| Dynamic Range：1 | 18 dB |
| Signal-To-Noise： | 118 dB |
| Output Impedance： | 4.7 Ohm |
| Balanced Output | ： |
| Output Power: |
5.19V@32Ω（840mW@32Ω） |
| Frequency Response： |
20 Hz - 40 kHz (-0.7 dB) |
| THD+N： | 0.00% |
| Channel separation： |
105 dB @ 32 Ohm |
| Dynamic Range： | 121 dB |
| Signal-To-Noise： | 121 dB |
| Output Impedance： | 6.6 Ohm |
- Shanling H5 Hi-Res Decoder Portable DAC/Amplifier
- USB-A to USB-C cable
- USB-C to USB-C cable
- 3.5mm to RCA coaxial cable
- Storage pouch
- User manual
